ACF-22
Automatic Capsule Filling Machine (For Pellet/Powder)
|
| |
|
| |
|
| |
| A
precise slide filler for pellets |
|

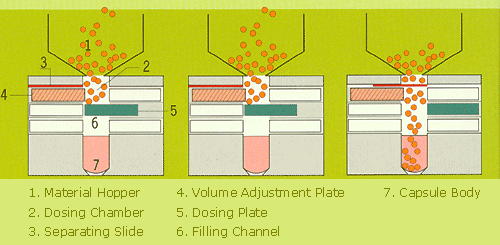

The
same mechanism of a volumetric filler has been
adopted for the pellet dosing and filling unit.
With a separating slide and a separating plate,
both moving back and forth, controlling the opening
of the material hopper and the dosing chamber,
respectively, pellets first fall from the material
hopper into the dosing chamber, then from the
dosing chamber into the capsule body being held
in the lower segment. Very accurate fill weight
is obtained with a volume adjustable dosing chamber.
The pellet filling station can be incorporated
prior or subsequent to the powder dosing station.
|
|
|
|
| |
Technical
Data
|
Capacity
|
16,000~20,000
|
|
Capsule
Size
|
#00,
#0, #1, #2, #3, #4, #5
|
|
Power
supply
|
220/380V
, A3 PHASE , 50/60Hz
(For customer to designate)
|
|
Power
Consumption
|
220
V 12A
380 V 6.6A
|
|
Main
Drive
|
1
HP 2.3A
|
|
Auger
Drive
|
1/4
HP 1.2A
|
|
Vacuum
Pump
|
1HP
3.6A
|
|
Net
Weight
|
850
KGs
|
|
Cross
Weight
|
1,000
KGs
|
|
Dimensions
|
815
x 905 x 1,958 mm (L x W x H)
|
|
Export
Packing
|
1,450
x 1,030 x 2,060 mm (L x W x H)
|
|
|
| |
|
| |
|
| |
|
| |
|
