Automatic Capsule Filling Machine is described station by station

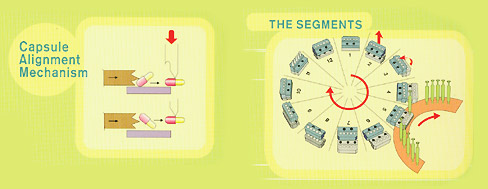

1.	Empty gelatin capsules are fed from a storage hopper to the rectifier, and inserted with the aid of vacuum into one of the 12sets of carrier segments; each carrier segment holds 5empty capsules
2.	The carrier segment's upper holder holding the caps is now lifted; separation of cap and body is assisted by vacuum
3.	The upper holder starts retracting while the lower proceeds to the dosing station
4.	Complete retraction of the upper holder is done at this station
5.	Powder slug is inserted into the capsule body; when there is no capsule body held at the lower holder, the powder slug will be further pushed downward and collected in a receiver tray
6.	Two station reserved for attachments to fill pellets or other granulated products
7.	Two station reserved for attachments to fill pellets or other granulated products
8.	Ejection of un-separated capsule or the up-side-down capsule caps is performed with an aid of 5upward stroking rods
9.	Upper holder starts moving outward to the position above the lower holder
10.	At this station, while upper and lower holders are closely matched the capsule bodies are pushed upward into the caps by 5 steel rods
11.	Now the closed capsules arriving at this station are again pushed upward by the other 5 steel rods and leave the carrier segment
12.	Carrier segment is vacuum-cleaned and proceeds to the capsule insertion station

Technical Data Capacity 36,000~40,000 Capsule Size #00, #0, #1, #2, #3, #4, #5 Power supply 220/380V , 3 PHASE , 50/60Hz (For customer to designate) Power Consumption 220 V 12A 380 V 6.6A Main Drive 1 HP 2.3A Auger Drive 1/4 HP 0.7A Vacuum Pump 1HP 2.3A Net Weight 850 KGs Cross Weight 1,000 KGs Dimensions 815 x 905 x 1,958 mm (L x W x H) Export Packing 1,450 x 1,030 x 2,060 mm (L x W x H)
