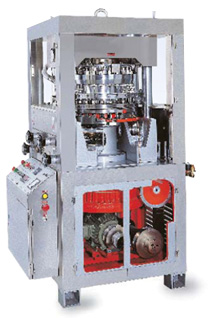

Making Machine (Rotary Tabletting Machine)
"DH " Series Double-Layer Rotary Tablet
Machines, can be proven to be reliable for : |
| |
|
|
|
|
For
medium to larhe batch production. |
|
|
Allow
for single layer tabletting purpose with double-sided
output. |
|
|
Accurate
tabletting. |
|
|
Tabletting
compartment separated from drive mechanism.
|
|
|
Mechanical
compression system. |
|
|
Easy
maintrnance & cleaning. |
|
|
Meets
GMP. |
| Machine
drive is completely |
| separated
from the press spaceDirect rotation of the
turret by the main shaftreduces the noise
level.The gearbox, with a casehardened nickel
steelground worm and bronze wormwheel,it provides
maximum protection to thegears and the drive
system. |
|
| ................................................................................................................................... |
| Machine
drive is completely separaed from the press
apace |
| Direct
rotation of the shaft reduces the noise level.
The gearbox, with a casehardened nickel steel
ground worm and brinze wormwheel, it provides
maximum protection to the gears and the drive
system. |
|
|
|
| Mechanical
compression system |
The
dersign of machanical compression system can
be ensured for longer production runs.
Pressure rollers are made of special tool
steel that ensures uniform pressure application,
the double bearings are fitted,which minimize
wearing of the rollers. |
| |
| Cam
design & lubrication |
| A
center lubrication system supplies oil continuously
to lower punches, while grease applied manually
lubricates upper punches. The ejection cam
is manufactured from apecial tool steel for
extended life, while a double sided liting
cam is provided. |
| |
| Cleaning
and tool changeover |
| The
detachable panels can be removed easily, which
reveal the entire lower punch cams. which
reveal the entire lower punch cams. This allows
easy removal of the lower punches. |
| |
| Upper
& Lower punch seals |
The
scrapers seals for the upper punches protect
tablets from oil drip, while the dust seals
on the lowers prevent the punches from binding
and reduce wear on the cam.
This combined with an efficient dust extraction
system allows prolonged run with little downtime
for cleaning. |
|
| ................................................................................................................................... |
|
|
| Multi-Layar
Tabletting Purpose |
| The
machine is designed for double-layer tabletting
purpose with single-sided output, it can also
be easily converted for single layer tablet
production, but with double-sided output.
Both layers can also be easily converted for
single layer tablet production, but with double-sided
output. Both layers can be easily weight controlled
respectively. |
|
| Difficult
products |
| Although
not equipped with pre-compression as standard,
the ²¸DH²¹ series machine can be
provided with special parts to allow one side
of the press to be used as pre-compression
featuhes. |
|
| .................................................................................................................................. |
Specifications:
|
MODEL
|
JC-DH-230
|
JC-DH-
29DB
|
JC-DH-
29B
|
JC-DH-35BB
|
| Type
of tooling |
EU"D"
|
EU"DB"
|
EU"B"
|
EU"BB"
|
| Number
of station |
23
|
29
|
29
|
35
|
| Table
diameter Max |
25.4mm
1"
|
19mm(caplet)
(0.74")
|
16mm
(0.625")
|
13mm
(0.50")
|
Production
capactity
tablets/hours (60HZ)*
Single layer |
33,000-132,000
|
42,000-167,000
|
50,000-200,000
|
Production
capactity
tablets/hours (60HZ)*
Double layers |
16,500-42,000
|
21,000-52,000
|
25,000-58,800
|
| Revolution
of turret / Min (60 Hz)*
|
12-48
RPM
|
| Depth
of fill adjustable to |
19mm
(0.75")
|
17mm
(0.67")
|
| Max
pressure |
10,000kgs
(22,000lb)
|
| Diameter
of die |
38.1mm
(1.5")
|
30.16mm
(1.1875")
|
24mm(0.945")
|
| Height
of die |
23.81mm
(0.9375")
|
22.22mm
(0.945")
|
| Nominal
diameter of punch body |
25.4
mm (1")
|
19
mm(0.75")
|
| Turret
P.C.D |
365
mm
|
| Power
consumption |
3HP
(2.2kw)
|
| Machine
dimensions |
1000x1100x1650mm
(not including hopper)
|
| Net
weight |
1800
kgs (3960 Ibs)
|
|
*Subjest
to the characteristics of the power.
*The manufacturer
reserves the right to modifty the design,
specifiaction, etc., to improve
the performance of the machine without notice.
All the specifiaction shown are reference
only. |
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
