Making Machine (Rotary Tabletting Machine)
High-Speed Rotary Tabletting Machine
"H" Series Presses Offer |
| |
|
|
|
Our

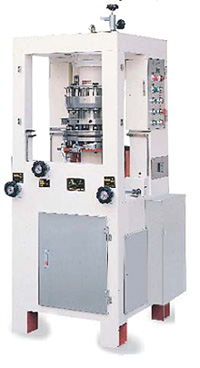

"H" series Rotary Table Presses, Modeles
JC-RT-16H/JC-RT-20H / JC-RT-24H have proven
to be reliable for:
|
|
|
Accurate
tabletting . |
|
|
Compression
in two stages. |
|
|
Tabletting
compartment separated from drive mechanism. |
|
|
Easy
maintenance & cleaning. |
|
|
Meets
GMP. |
|
|
Efficient
medium size production runs, with capacity
upto 100,000 table per hour. |
|
|
Laboratory
and pilot plant studies. |
|
| ................................................................................................................................... |
|
|
| Cam
Design & Lubrication |
| A
Central lubrivation system supplies oil continuously
to lower punches, while grease applied manually
lubricates upper punches. The ejection cam
is manufactured from special tool steel for
extended life, while a doublesided lifting
cam is provided. |
|
| Direct
Rotation of Turret |
| Direct
rotation of the turret by the main shaft reduces
the moise level; it provide maximum protection
to the gears and the deive system. |
|
| ................................................................................................................................... |
|
|
| Upper
& Lower Punch Seals |
| The
scrapers seals for the upper punches prtect
tables from oil drip, while the dust seals
on the lowers prevent the punches from binding
and reduce wear on the cam. This combined
with an efficient dust extraction system allows
prolonged run with little downtime for cleaning. |
|
| .................................................................................................................................. |
| PRE-Compression
and Main Compression |
| High
pre-compression of 3000 kgs insures trouble-free
processing of difficult granules. It helps
in the direct compaction of difficult granules.
It helps in the direct copaction of materials,
redcing lamination and capping. Pressure rollers
are made of special tool steel that ensures
uniform pressure application. The double bearinfs
are fitted, which minimize wearing of the
rollers. |
|
|
|
| Feeding
Material The feeder support |
| Platform
is preset at the factory to the correct height
and should not require adjustment. Quick release
clamping screws allows removal of the feeder
for cleaning and tool changeover without the
need to disturb the feeder plarfrom setting. |
| Mechanical
Feeder |
| The
two chambers feeding system has been improved
further. Itis driven from top by a variable
speed motor. The unit can be assembled or
disassembled easily. |
|
| .................................................................................................................................. |
 |
| Cleaning
and Tool Changeover |
| The
detachable panels can be removed easily,
which reveal the entire bottom punch
cams, This allows easy removal of the
bottom punches. Upper punch monitoring
device is available that would switch
off the machine in the event of punch
tightness. |
|
Specifications:
|
MODEL
|
JC-RT-16H
|
JC-RT-20H
|
JC-RT-24H
|
| Type
of tooling |
EU"D"
IPT"D"
|
EU"D"
|
EU"B"
IPT"B"
|
EU"BB"
IPT"BB"
|
| Table
diameter Max |
25.4mm
1"
|
19mm(caplet)
(0.74")
|
16mm
(0.625")
|
13mm
(0.50")
|
| Production
capactity (tablets/hour)
* |
17,000-6,9000
|
21,500-86,000
|
25,900-103,000
|
| Revolution
of turret / Min (60 cyc)*
|
18-72
RPM
|
| Depth
of fill adjustable to |
19mm
(0.75")
|
17mm
(0.67")
|
| Maximum
operating pressure |
10,000kgs
(22,000lb)
|
| maximum
pre-pressure |
3,000kgs
(6,600lb)
|
| Diameter
of die |
38.1mm
(1.5")
|
30.16mm
(1.1875")
|
24mm(0.945")
|
| Height
of die |
23.81mm
(0.9375")
|
22.22mm
(0.945")
|
| Nominal
diameter of punch body |
25.4
mm (1")
|
19
mm(3/4")
|
| Turret
P.C.D |
253
mm
|
| Power
consumption |
3HP
(2.2kw)
|
| Machine
dimensions |
850x790x1710mm
(not including hopper)
|
| Net
weight |
1200
kgs (2646 Ibs)
|
|
*Subjest
to the characteristics of the power.
*The manufacturer
reserves the right to modifty the design,
specifiaction, etc., to improve
the performance of the machine without notice.
All the specifiaction shown are reference
only. |
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
